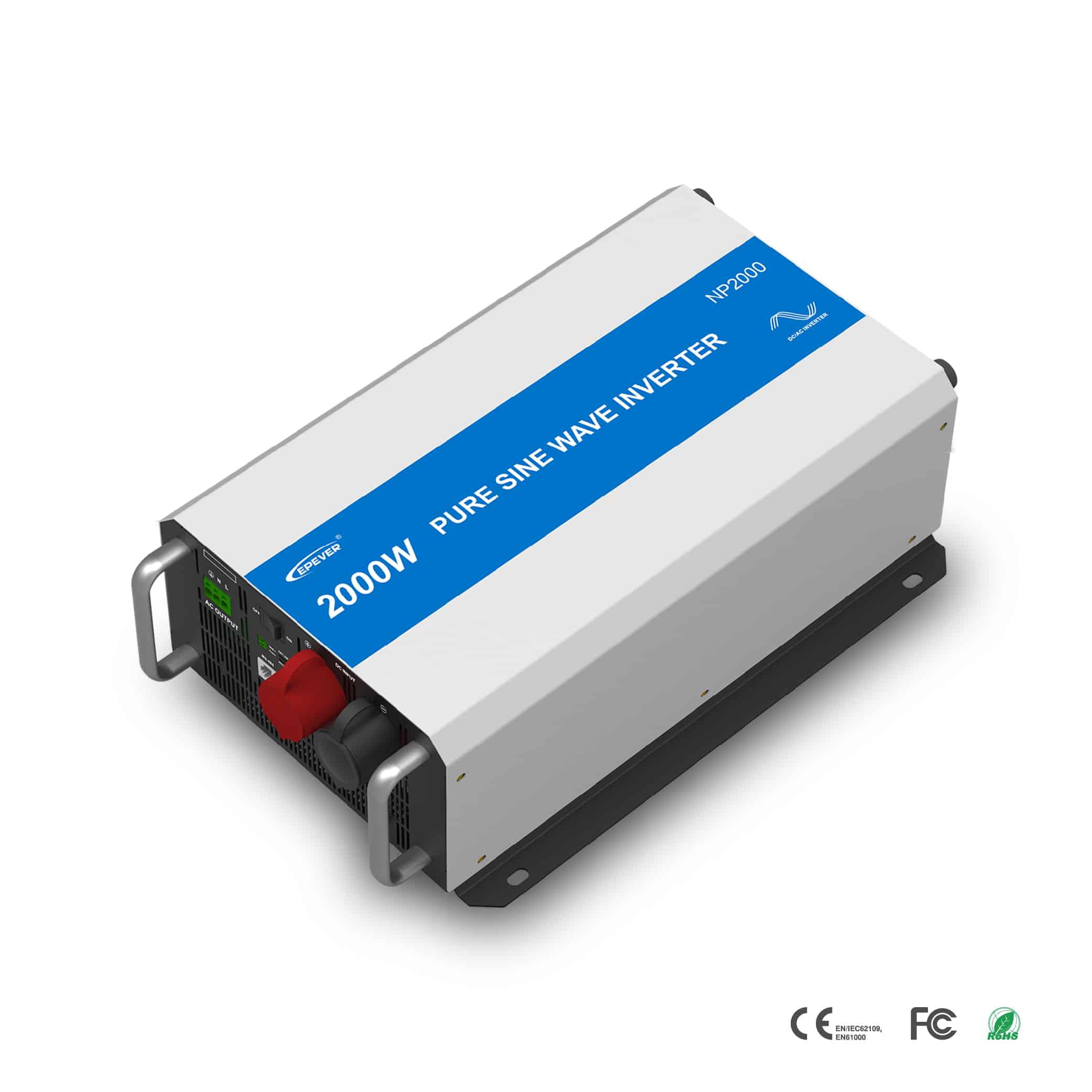

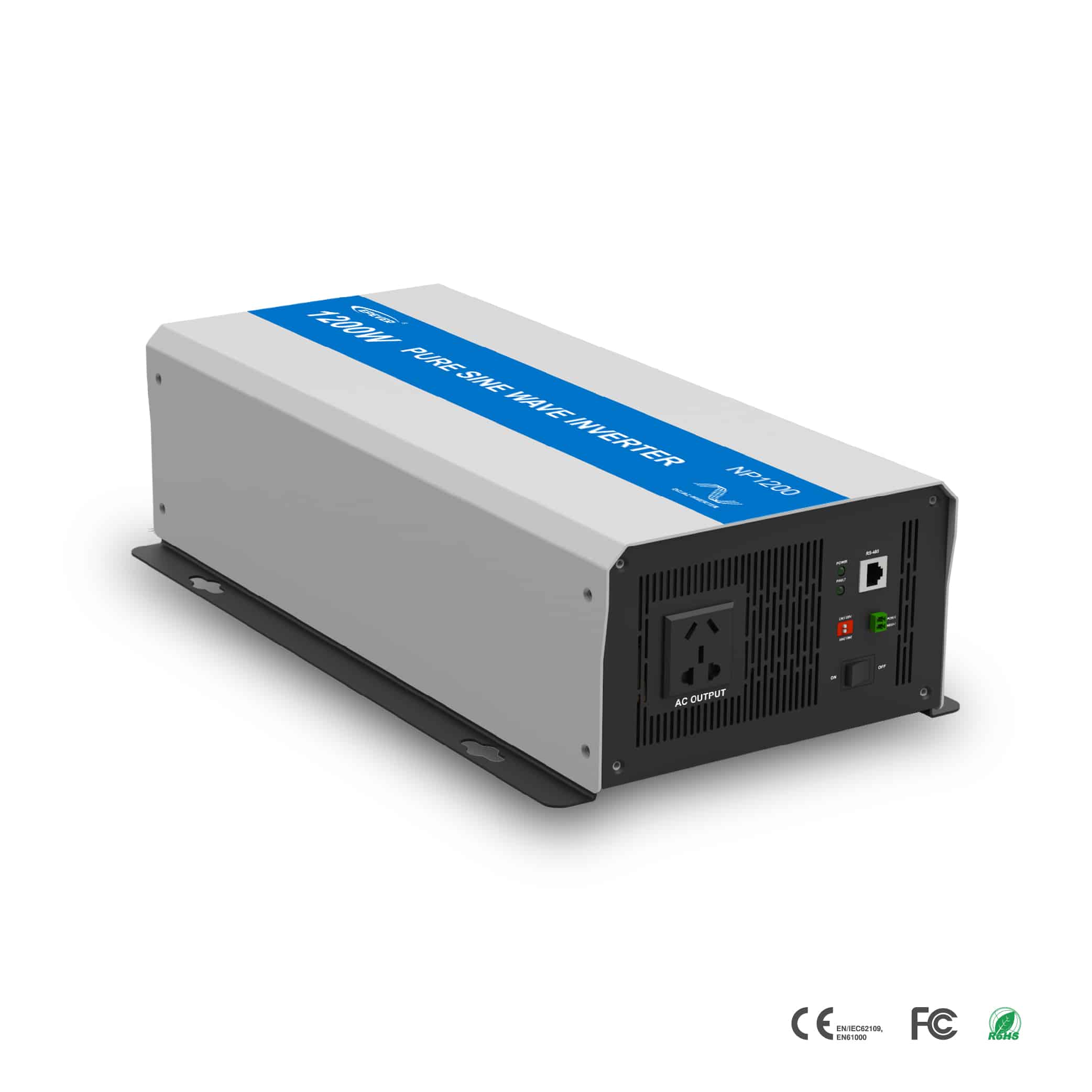

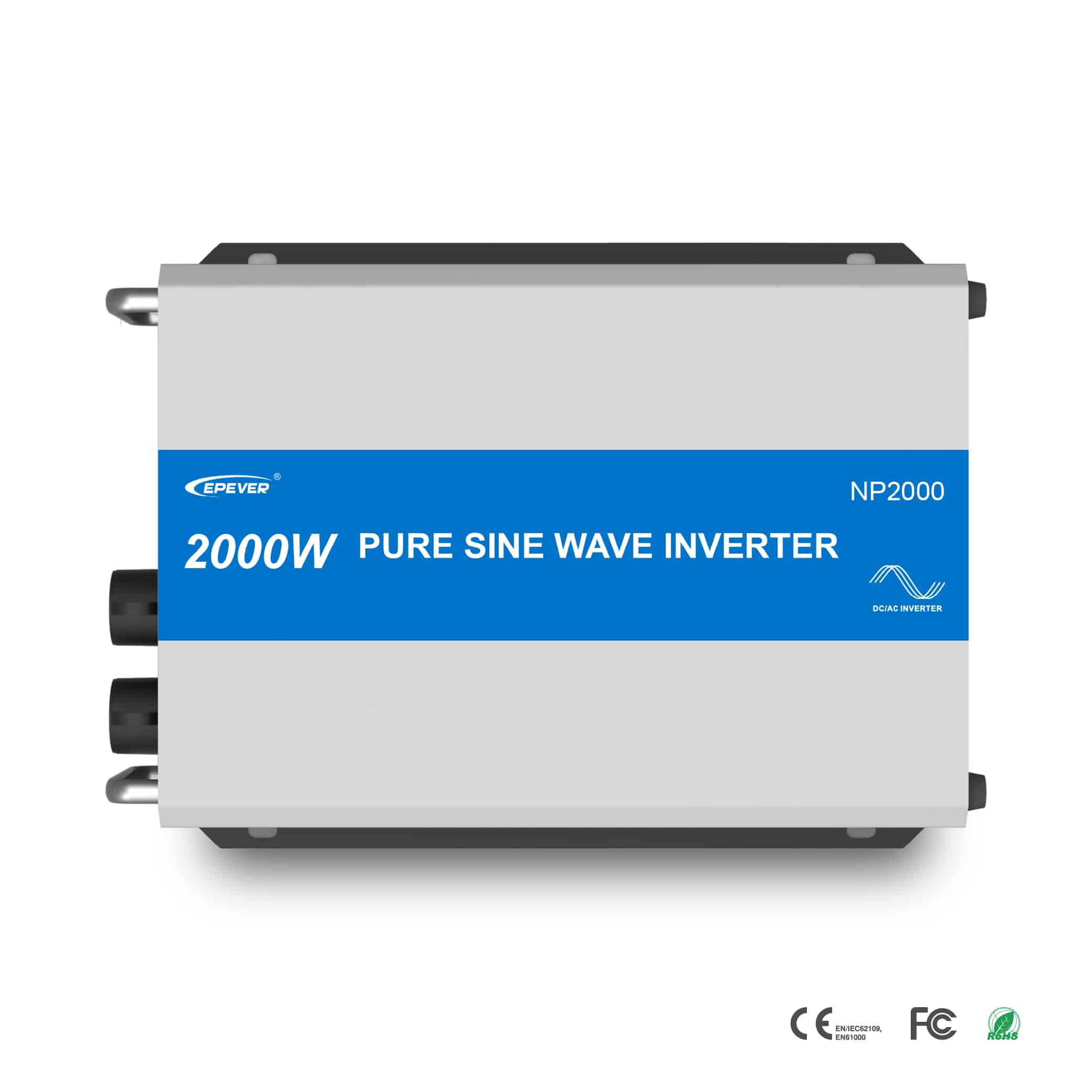

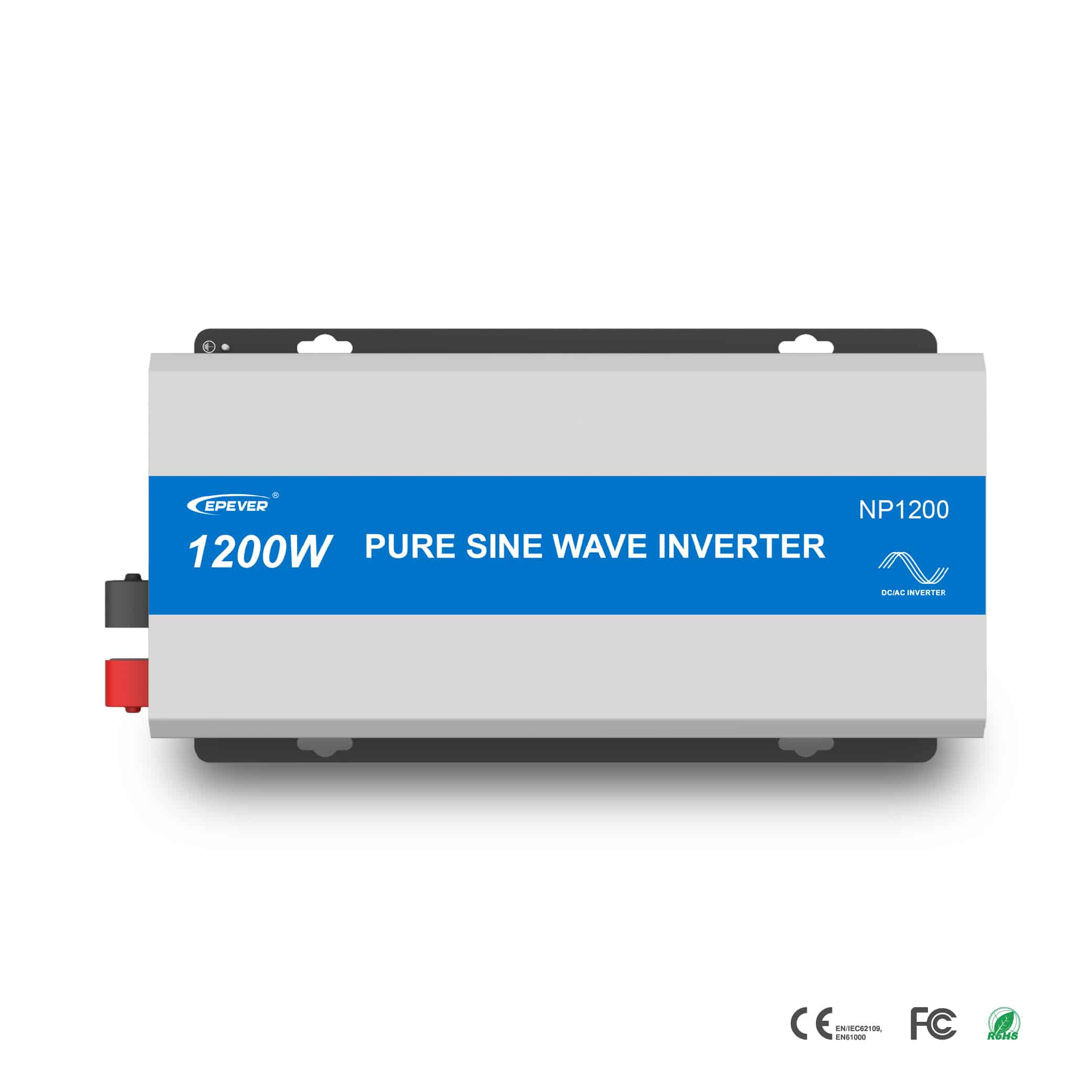

NPower Series(110/120VAC) 600~2500W Pure Sine Wave Inverter
NPower series is a low-frequency pure sine wave inverter that can convert 12/24/48VDC to 110/120VAC and power the AC loads. It has a stronger ability to work with impact load. Ranging from 260W to 5000W, Npower is compatible with lithium-ion batteries perfectly and suits the system which requires high reliability.
Request a quote
- 2-year warranty
- Worldwide support
- Certified & compliant
Specifications
- Continuous Output Power
- 2500W@25℃, 2500W@45℃
- Surge Power
- 5000W
- Output Voltage
- 110/120VAC(±5%)
- Output Frequency
- 50/60Hz±0.2%
- Output Wave
- Pure sine wave
- Output Distortion Thd
- THD≤5%(Resistive load)
- Load Power Factor
- 0.2-1(Load VA ≤ Continuous output power)
- Rated Input Voltage
- 48VDC
- Input Voltage Range
- 43.2~64VDC
- Output Efficiency Of 80% Rated Power
- 91.10%
- Max. Rated Efficiency
- 89.70%
- Max. Output Efficiency
- 94%(800W)
- No-Load Current
- ＜0.5A
- Static Loss
- ＜1.8W@48V
- RS485 Com. Port
- 5VDC/200mA (Isolation)
- Dimension(lxwxh)
- 549×328×175mm
- Mounting Dimension
- 350×307mm
- Net Weight
- 26.5kg
- Operating Temperature Range
- -20℃~+45℃(Full load)
- Relative Humidity
- < 95%(N.C.)
- Enclosure
- IP20
Highlights
- Adoption of advanced SPWM technology, pure sine wave output
- Adopt voltage and current double closed-loop control to enhance the load capacity
- The input and output adopt completely isolated inverter technology with high reliability
- The input adopts an anti-surge design to meet the special requirements of surge limitation of the lithium battery
- The output adopts excellent EMC design to prevent interference of connected equipment
- Output voltage 220/230VAC and frequency 50/60Hz optional
- Extensive protections: input reverse polarity, input overvoltage, input low voltage, output overload and short circuit, overheating
- RS485 port can connect the communication module, realize remote start/stop inverter and monitor the running status via the APP or PC software
- Set the inverter’s ID via the APP or PC software to monitor several inverters
- The case is designed with the galvanized board, with high strength and strong corrosion resistance
