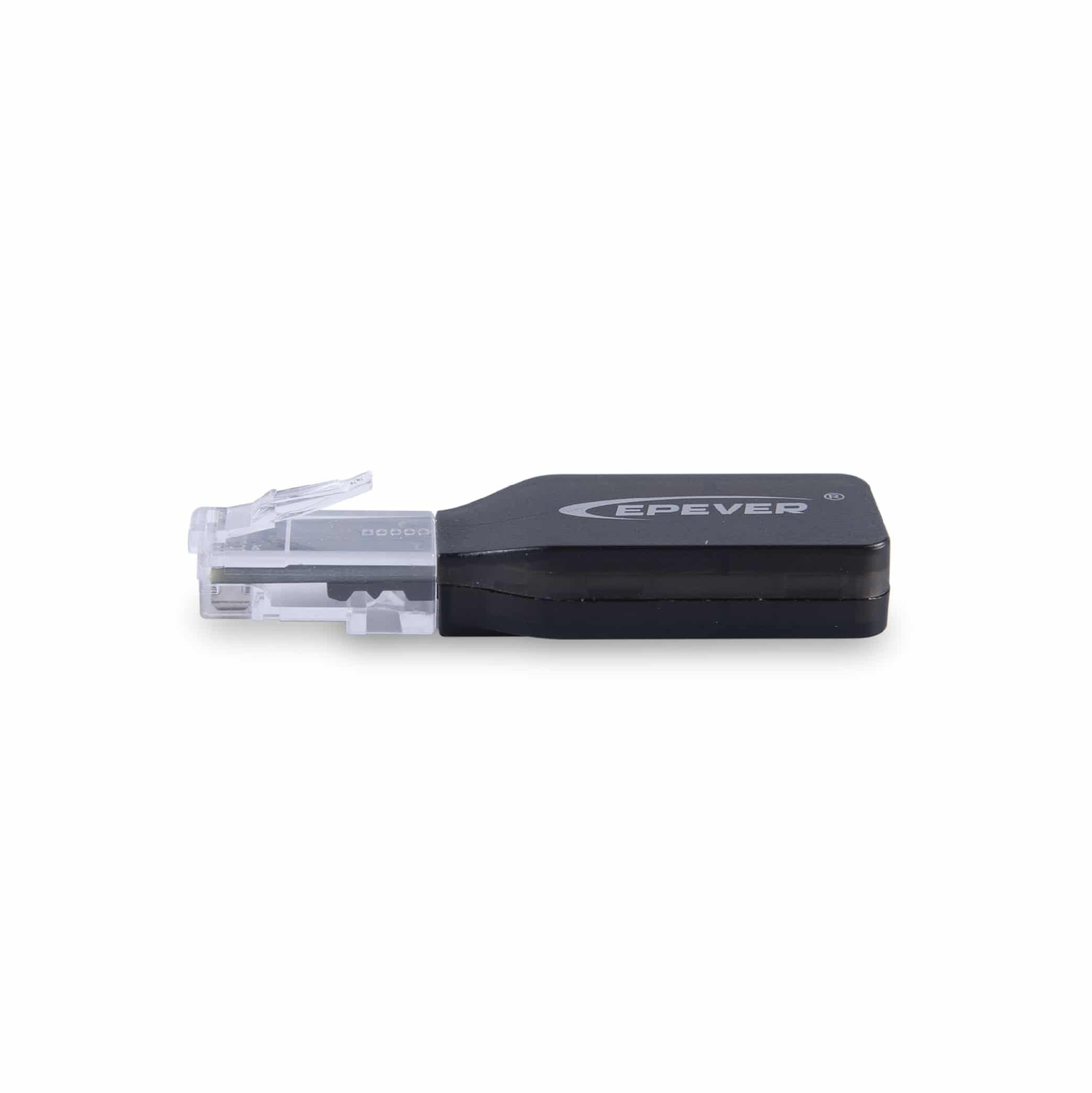

EPEVER WiFi Adapter 2.4G RJ45 D
The EPEVER WiFi 2.4G RJ45 D WiFi adapter is mainly used for real-time transmission of various power generation data from EPEVER controllers, inverters, hybrid inverter chargers, etc. to the EPEVER cloud server. It supports wireless monitoring and parameter setting of on-site devices via cloud servers, mobile apps, or large screens. Note: the WiFi 2.4G RJ45 D module is specifically designed to be compatible with the Solar Guardian app.
Request a quote
- 2-year warranty
- Worldwide support
- Certified & compliant
Specifications
- Interface Standard
- EPEVER general communication standardV1-1.0
- Communication Parameters
- 115200Bps, 8N1
- Net Weight
- 7.7g
- Communication Protocol
- EPEVER communication protocol V1.1
- Working Voltage
- 5V± 0.5V(Powered by RS485 com. port)
- Power Consumption
- Peak emission: 150mA; Idle: 310uA
- Enclosure
- IP54
- Communication Method
- RS485
- Working Frequency
- 2.4 ~ 2.4835GHz
- Environment Temperature
- -40℃~ 85℃
- Dimension
- 63* 19* 10mm
Highlights
- 2.4G WiFi Networking Communication
- Works with Controllers, Inverters, and Inverter Charger with RJ45 Interface
- Plug-and-Play with Easy Setup
- Communication Port Powered Directly, No External Power Required
- Communication Distance: Up to 20 Meters
- Support Two Working Modes: Offlfline Monitoring; WIFI Data Upload to the Cloud
