ELD Series 6K-15K On-Grid Hybrid Inverter
Low Voltage Hybrid Inverter designed for residential and light commercial solar energy storage systems, the ELD6–15K Series operates on a reliable 48V battery platform and supports 120/240V split phase output. It integrates grid-tied operation, battery storage, and intelligent energy management into one flexible solution. During the day, solar energy powers loads, charges batteries, or exports excess electricity to the grid. At night or during peak pricing periods, stored energy provides reliable backup with UPS-level transfer time under 10ms. With support for parallel expansion, generator integration, and AC coupling, the ELD Series delivers a scalable and dependable 48V split phase hybrid inverter solution for modern energy independence.
- 2-year warranty
- Worldwide support
- Certified & compliant
Specifications
Highlights
- High Efficiency: 150% PV oversizing capability; Max. PV input power: 22500W; Max. 4 MPPTs; Max. PV input voltage: 500VDC; Input current per string: 20A; Max input current: 80A; Overload capability: 200% for 10 s

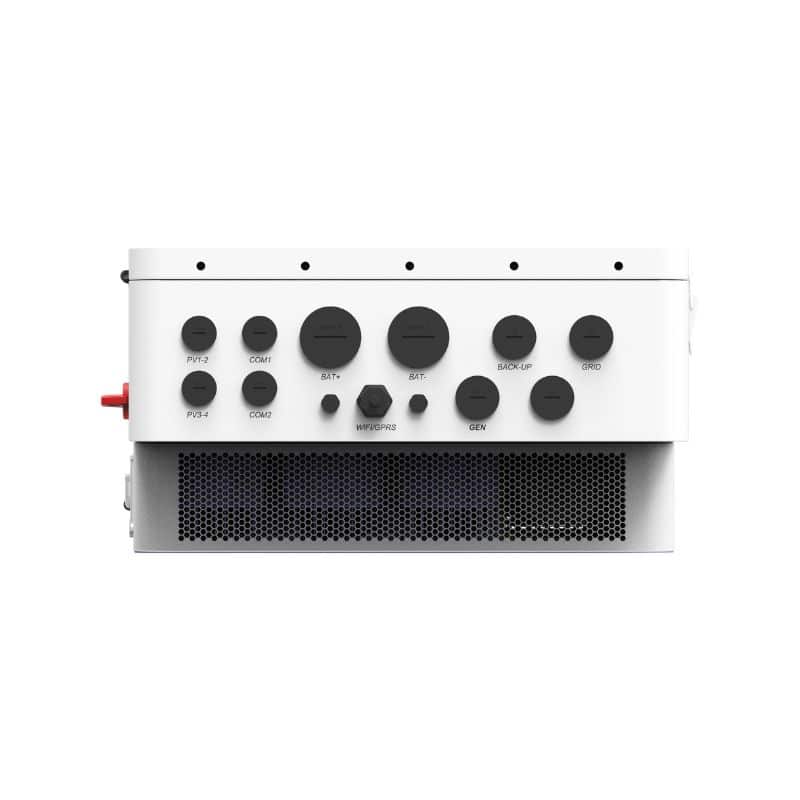

- Smart Power Management: Smart interface: ① Generator connection ② Load connection ③ AC coupling with grid-tied PV inverters; UPS-level switching <10 ms; Supports 100% unbalanced loads in off-grid mode; Parallel Capability: ① Up to 6 units in parallel (On-grid & Off-grid) ② Multi-battery parallel support: independent or shared battery bank; Zero export function; Feed-in power limit
- User-Friendly Monitoring: Optional LCD display; Standard RS485 communication port; WiFi / GPRS (Optional)
- Reliable & Safe: Type 3R-rated protection; Built-in Type II SPD; Optional function: RSD, AFCI
